Mini flytower flight controller Super_s F4 Betaflight OSD and ESC
Recipient :
* Required fields
or Cancel

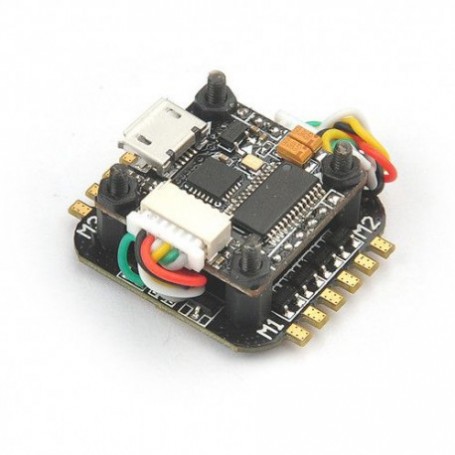

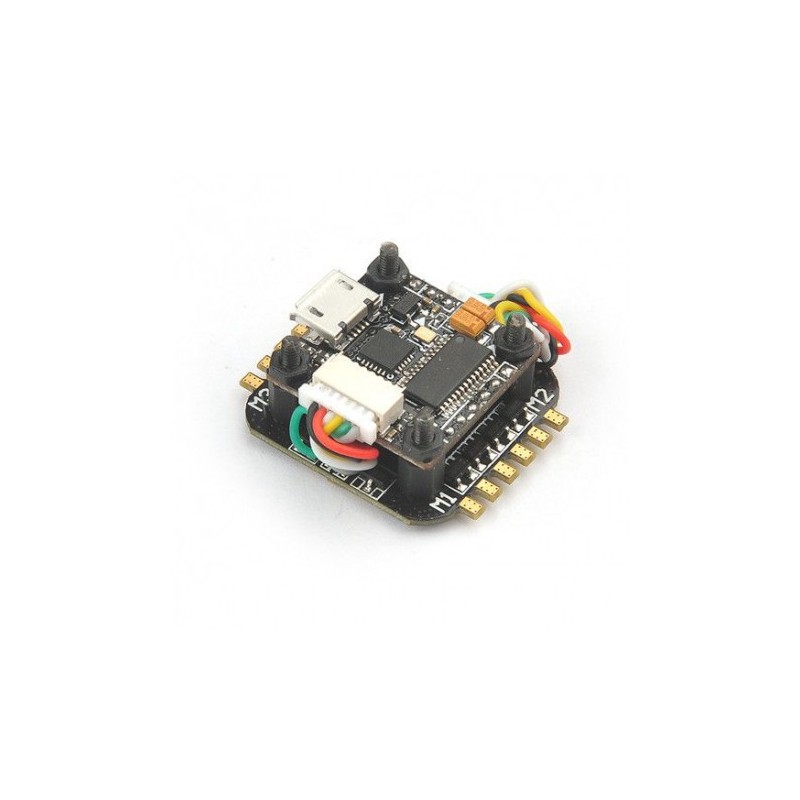

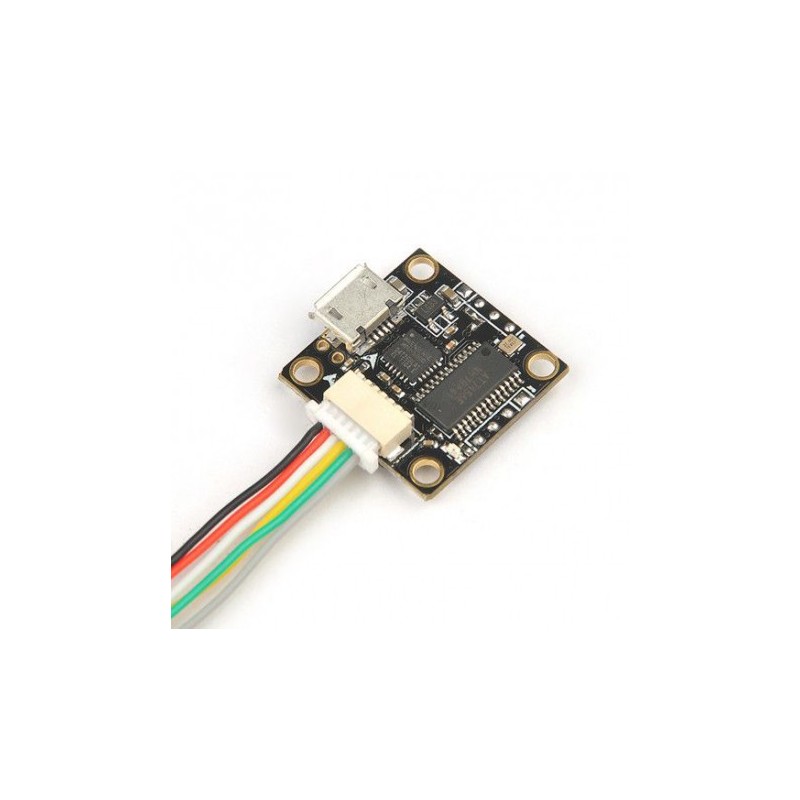

Mini flytower with Super_S F4 flight controller betaflight_3.1.7_OMNIBUSF4SD and ESC 4 in 1 6A BLHELI_S. For micro drone racing frame 60-88mm with mounting hole 15-16mm.

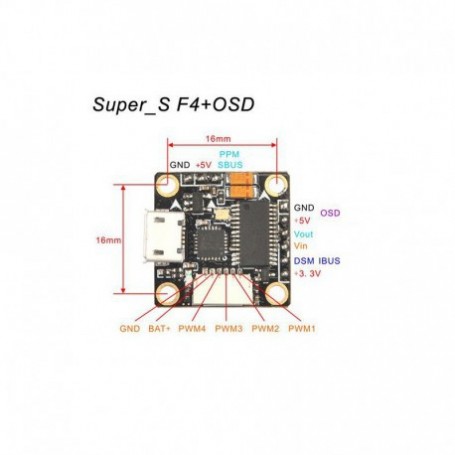

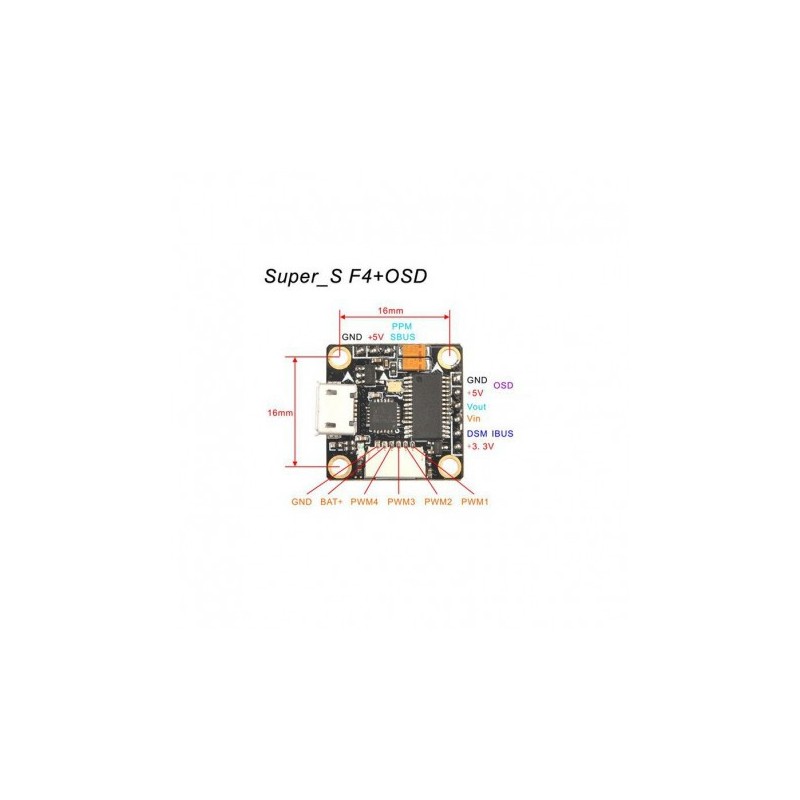

Radio receiver assembly instructions
-SBUS/IBUS/DSMX, Configure RX1(UART1) as Serial_RX on Betaflight
-PPM, Disable LED_Strip. No need to configure a Serial_X
-DSM/DSM2/DSMX, Powered by 3.3V.
-SBUS/IBUS/PPM, Powered by 5V.
Tutorial
| Brand | Happymodel |
| Size | FC 20*20mm - ESC 25x29mm (incluant patte de soudage) |

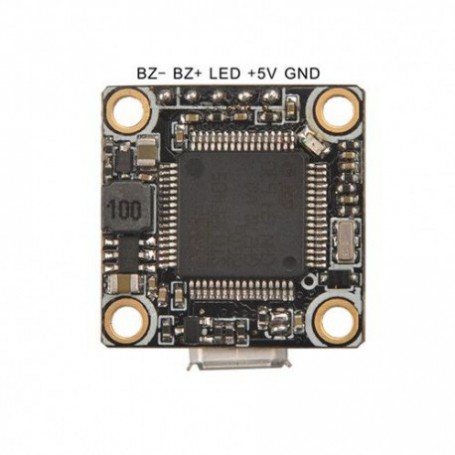

| Flight controller | Super_s F4 |
| Firmwares FC | Betaflight_3.1.7_OMNIBUSF4SD |

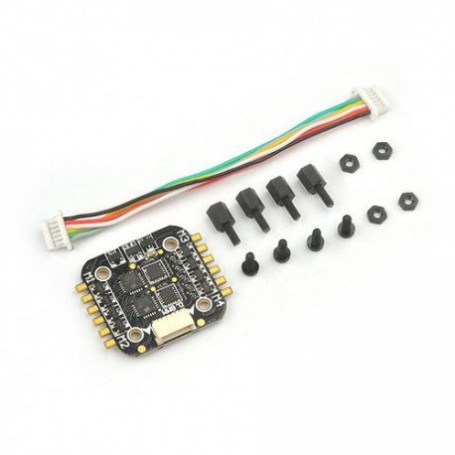

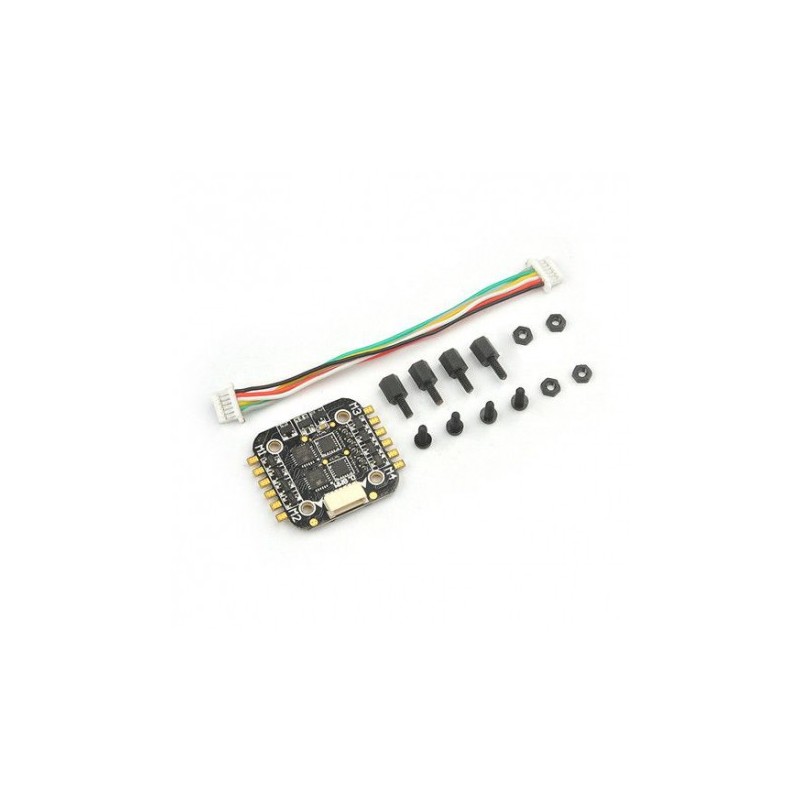

| ESC | Super_s 4 In 1 6A BLHeli_S ESC |
| Firmwares ESC | BLHeli_S (Defaut Dshot600) |

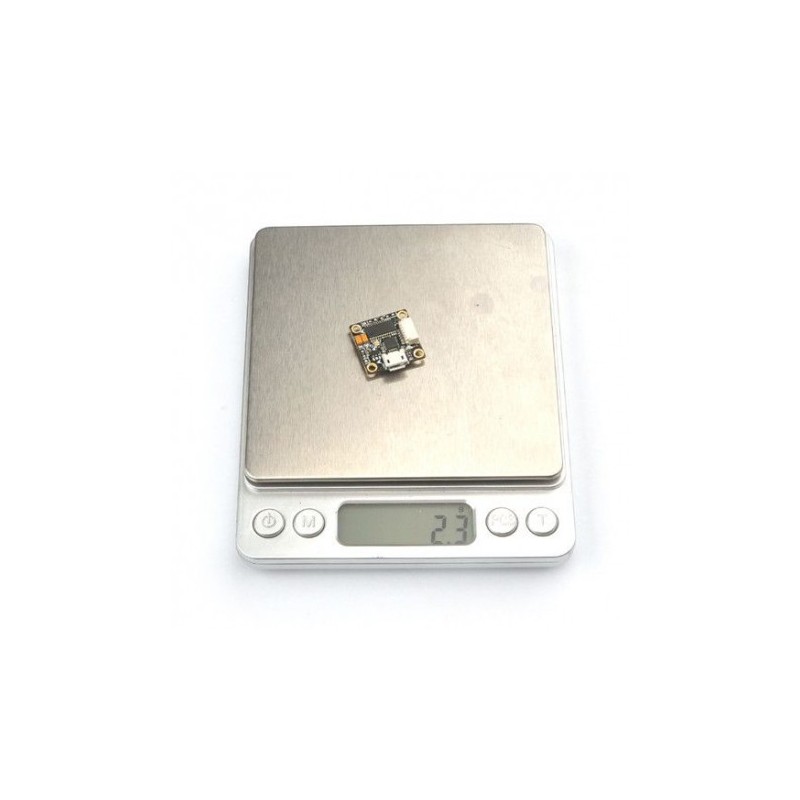

| Weight | FC 2.3g - ESC 3g |
| Sensors | MPU-6000 |
| Max Courant continu (a) | 6A (pic 10A) |

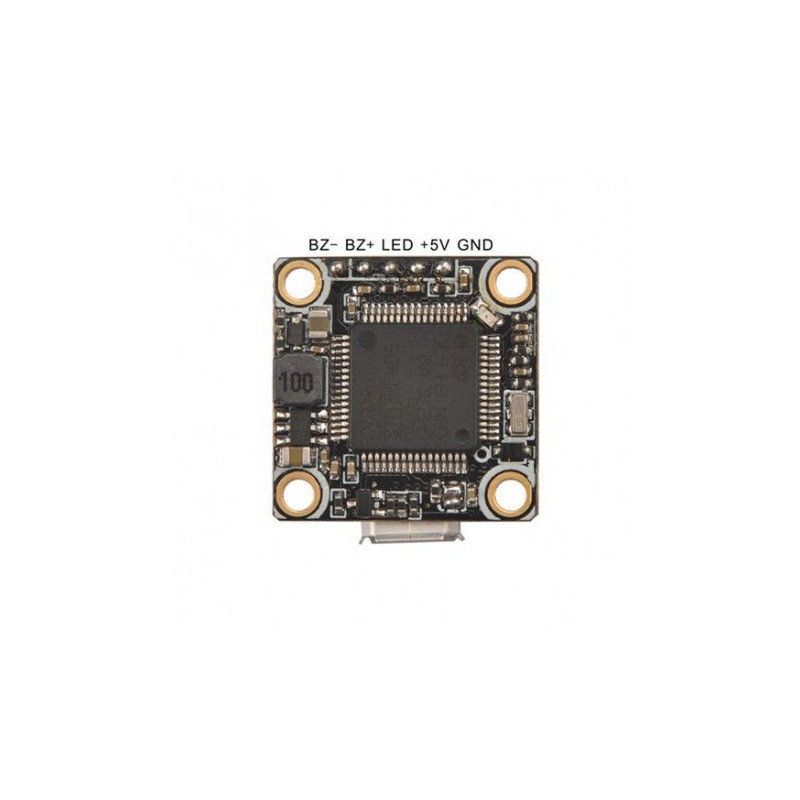

| Processor | STM32F405RGT6 |
| Lipo Nb Cellules supportées (S) | 2S |
| Mounting holes | 16mm |

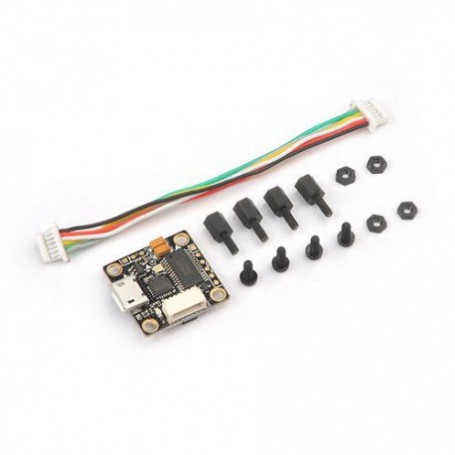

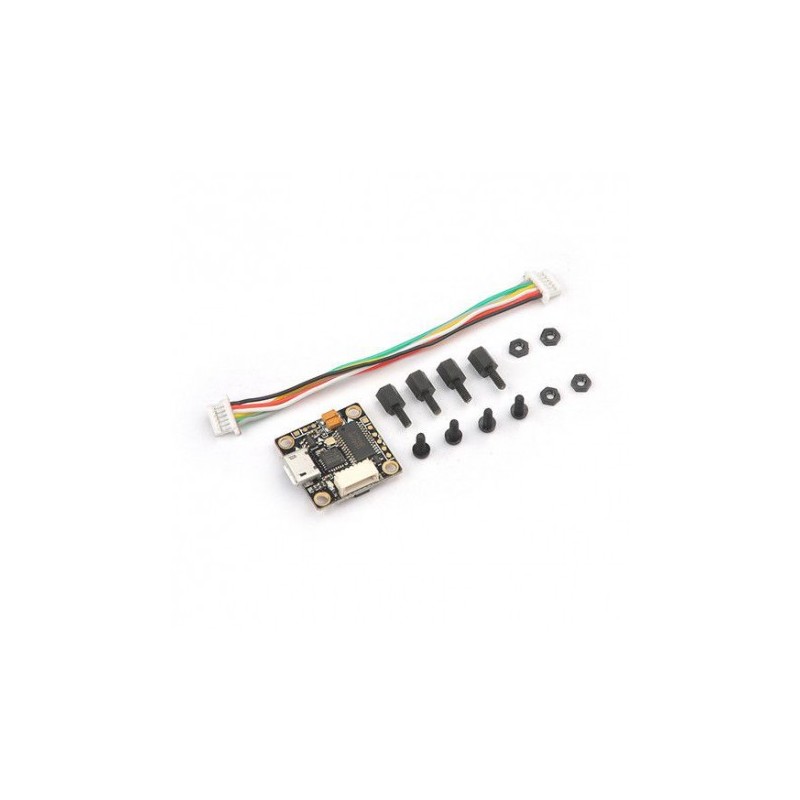

| Package content | 1 * F4 FC - 1 * ESC 4 en 1 6A - 1 * Set de vis |
